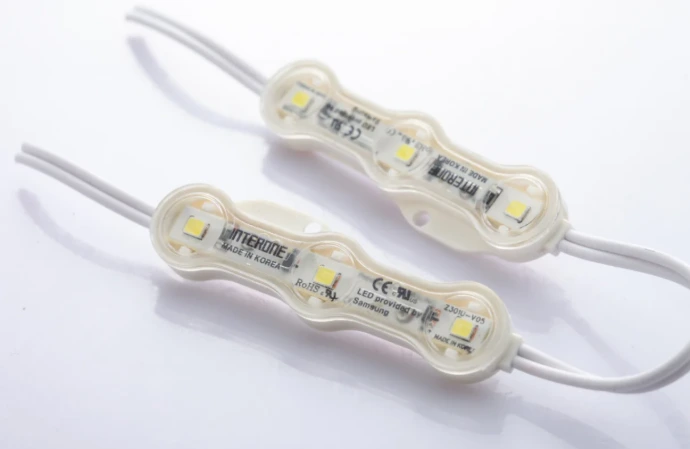

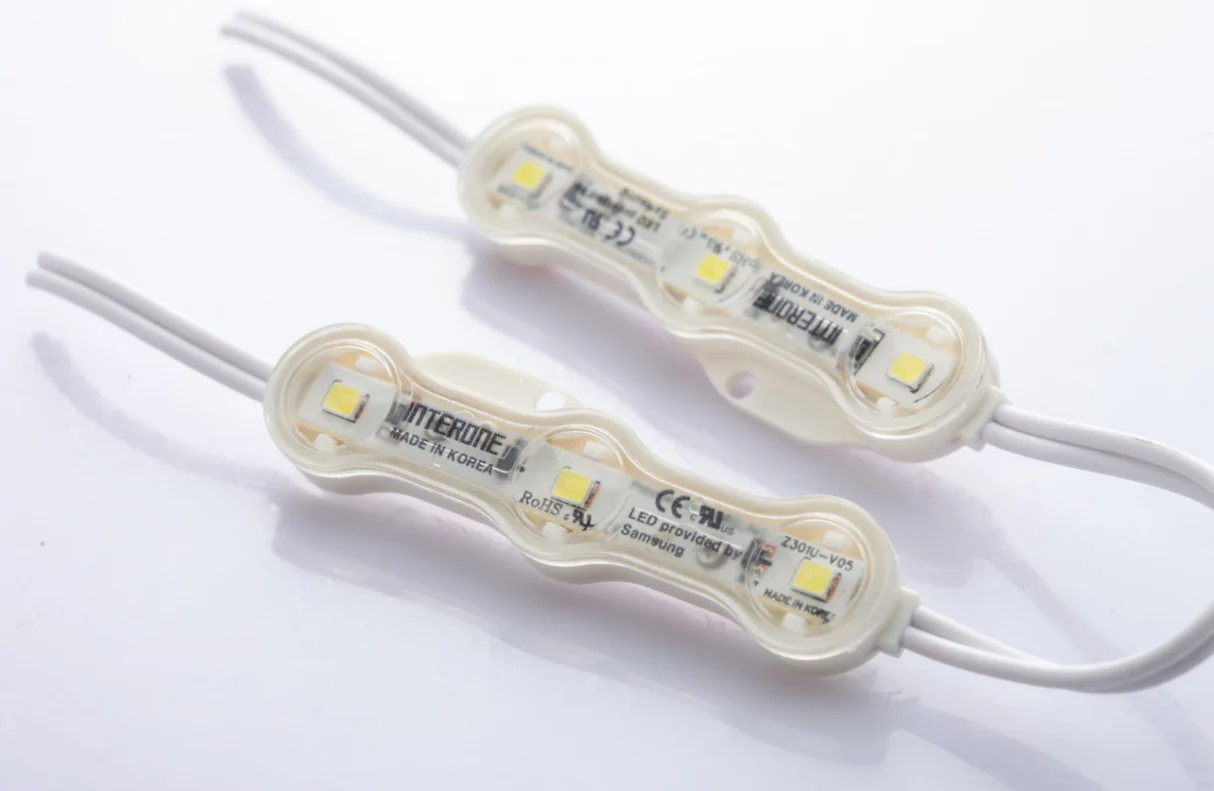

Professional LED signage module
White Peanut Series
Samsung-chip 3 LED module with 170° wide-angle lens.
Compact 12V white LED modules for channel letters, backlit signs, illuminated displays and commercial signage where broad, even light distribution matters.
- 170° wide-angle lens
- 12V DC operation
- IP68 waterproof protection
- 50-module strings
Voltage
12V DC
Beam angle
170°
Power options
0.72W / 1.20W
Protection
IP68
Wide light distribution
170° optics help reduce visible hot spots.
Waterproof construction
IP68 protection for demanding sign installations.
Multiple white options
3000K, 6500K and 9000K colour temperatures.
Project support
BPS can help review module and driver requirements.
Product overview
Wide-angle illumination for professional sign applications.
The White Peanut Series combines Samsung LED chips, a broad 170-degree lens and weather-resistant construction for illuminated signage and display work.
Select the appropriate colour temperature and power level around the sign depth, face material, desired brightness and installation conditions.
Applications
Designed for illuminated signage and display systems.
Wide beam distribution can reduce the number of visible light points and help create more even face illumination.
Backlit sign boxes
Create even internal illumination behind translucent sign faces.
Illuminated logos
Use compact modules behind fabricated lettering and brand elements.
Displays
Add concealed white illumination to promotional and product displays.
Light-box features
Integrate modules into suitable shallow illuminated features.
Interior signage
Create illuminated directional, reception and branded signage.
Technical specifications
Review the electrical, optical and environmental requirements.
Final system design should account for total module load, driver capacity, wiring, sign depth and operating conditions.
| Voltage | 12V DC |
|---|---|
| LED chips | 3 LED chips per module |
| Beam angle | 170° |
| Power options | 0.72W or 1.20W per module |
| Colour temperatures | 3000K, 6500K and 9000K |
| Mounting | 3M adhesive backing or screw |
| Protection | IP68 waterproof |
| Environmental temperature | -22°F to 158°F |
| Expected lifespan | Greater than 50,000 hours |
| Pack configuration | Pre-assembled strings of 50 modules |
| Certifications | CE, UL and KS approved |
Why this module
Built around uniform light, durability and installation flexibility.
Wide optical spread
The broad lens distributes light across a larger area, helping reduce concentrated hot spots.
Weather protection
Molded waterproof construction supports suitable exterior and exposed sign applications.
Common low-voltage platform
12V DC simplifies integration with suitable constant-voltage LED power supplies.
Flexible mounting
Install using the adhesive backing or mechanical fasteners where appropriate.
Pre-assembled strings
Modules arrive connected in 50-piece strings to streamline layout and installation planning.
Long service life
Rated operating life above 50,000 hours helps reduce ongoing maintenance.
Project planning
Size the LED system around the complete sign.
Send the sign dimensions, face material, return depth and desired colour temperature for a more useful project review.
Sign dimensions
Include cabinet, letter or illuminated-area measurements.
Return depth
The distance from LEDs to the illuminated face affects spacing.
Face material
Translucency and colour influence perceived brightness and uniformity.
Driver sizing
Calculate total wattage and provide suitable system headroom.
Technical documents
Need product documentation?
Contact BPS for current technical documentation, project guidance or help confirming module suitability.
Planning an illuminated sign?
Send the sign dimensions, face material, depth, preferred colour temperature and quantity for an initial review.
Product FAQs
Common questions before specifying LED modules.
Final module spacing and driver selection depend on the complete sign or lighting application.
What voltage does the Peanut Series use?
The module operates from a 12V DC
constant-voltage power source.
Which white colour temperatures are available?
Available white options include approximately
3000K, 6500K and 9000K.
Is the module suitable for outdoor signs?
The module carries an IP68 waterproof rating.
The complete sign installation, wiring,
power supply and connections must also be
designed appropriately for the environment.
How many modules are supplied together?
The product is supplied in pre-assembled
strings of 50 modules.
Which power version should I use?
Selection between 0.72W and 1.20W versions
depends on sign dimensions, depth,
face material, brightness requirements
and module spacing.
Can BPS help size the driver?
Yes. Provide the planned module quantity
or sign dimensions so the total load
and suitable driver capacity can be reviewed.
Product enquiry
Request pricing, availability or project guidance.
Share the quantity, colour temperature, power preference and intended application. Include sign dimensions when requesting layout or driver guidance.
